Crysteel Stainless Steel Dump Body including the following:

Body: 11’ L 84” I.D. 96” O.D.
Front style: straight, height 46”, material 7 ga. 201 2B stainless steel
Narrow dog house for telescopic hoist (hoist not included)
Side style: single panel with rubrail
Side height: 20” front/rear, inner material 7 ga. 201 2B stainless steel,outer material 10 ga. 201 2B stainless steel
Rear style: straight, height 28”, material 7 ga. 201 2B stainless steel
Rear pillar width: 14”
Stainless rear pillar/rubrail: rear pillar/pillar cap/rubrail
6 panel tailgate, 2 1/2” thick, air trip tailgate release
Floor material: 1/4” AR450 steel
Frame material: 1/4” A1011 steel – 7 ga. A1011 steel
Frame style: 12” Western Tubular
Body is 100% continuously welded
Two (2) oval light cut-outs in each rear pillar, less lights

Call for Pricing

!!BRAND NEW IN-STOCK ITEM!!

Supreme Dura-Plate Inner City Style Van Body including:

Body Length: 26’        Body Width: 96”         Body Height: 85”

Under structure:

            4” I-beam longsills

            3″ I-beam crossmembers on 12″ centers

            9” center crossmembers at the rear behind tandems

            1/8” treadplate floor overlay

            2 sets of spanner plates

            Galvanized front plate

Front: 6.0mm white Dura-Plate

            Aluminum extruded front corners

            Aluminum air deflector

            Composite corner castings

            3-rows of E-track at 12”, 32”, and 52” from top of floor to bottom of track

Sides:   6.0mm white Dura-Plate

            No skirts or Sidewall posts

            3-rows of E-track on each side at 12”, 32”, and 52” from top of floor to bottom of track

Roof:  .032 Aluminum roof skin

            Anti-Snag roof bows on 24” centers

Rear:   Standard style door opening 88”x79” with 6” header

            Stainless steel rear door frame

            10ga threshold

            Whiting overhead, full width, roll up door at the rear

Misc:   Install LED dome light mounted in center of ceiling wired to hot switch located at the rear

            2-Vents mounted in upper front corners of front panel

            3-Vents equally spaced on sides

            2-Vents mounted in upper corners of rear overhead door

            Mudflaps to be mounted behind rear tires

Call for Pricing

Rugby Rancher truck bodies

Other sizes available

Call for pricing

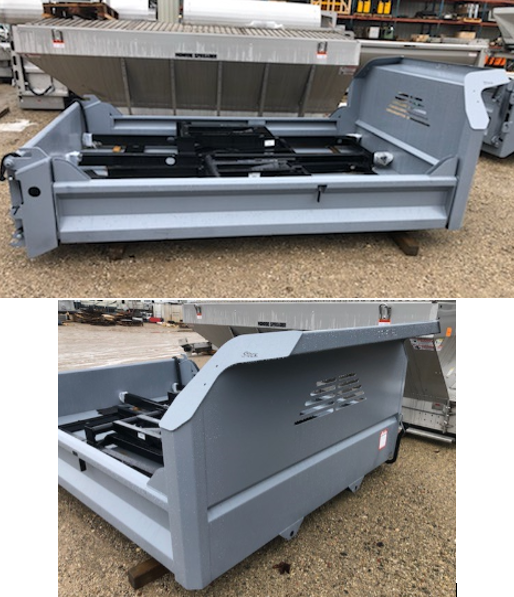

8’6″ x 84″ box delete bed #1932727 IN STOCK

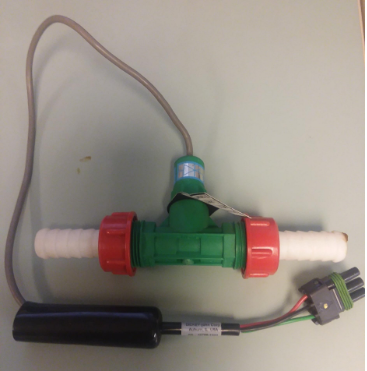

Dickey-John Encoder

Flow meter #46788-1000

Compatible with Dickey-John control point systems

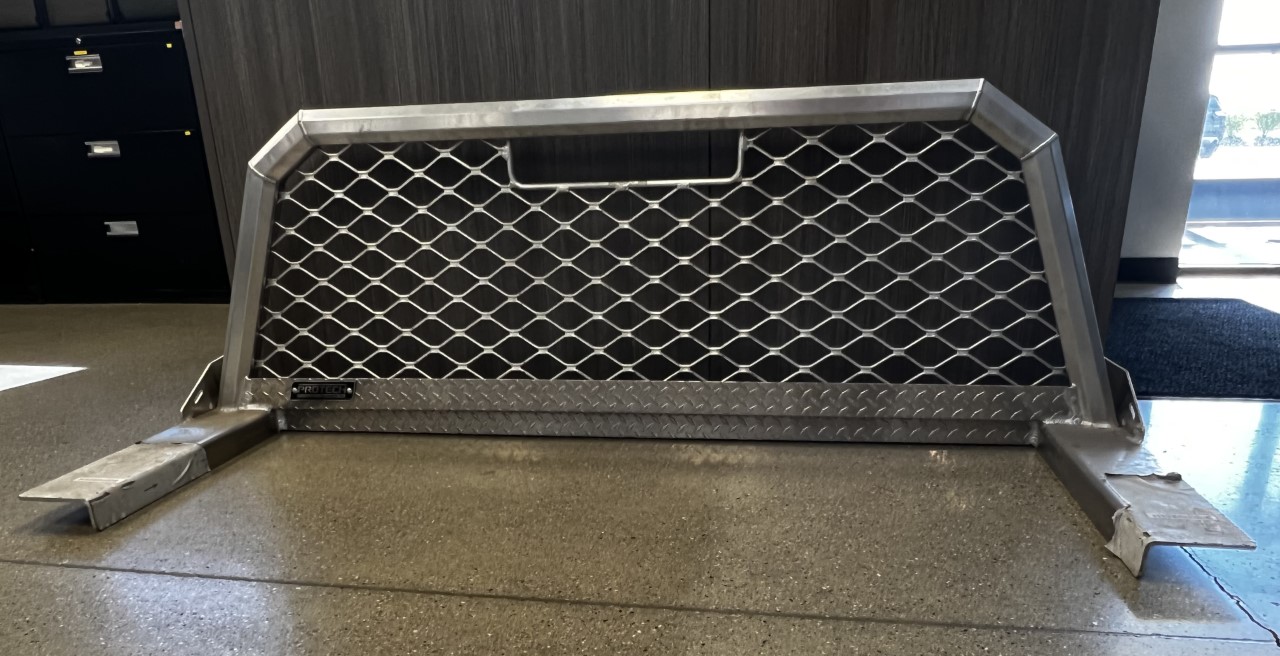

Crysteel TBEI Cabshield

77″W x 36″H

#1623866

Primer Grey
